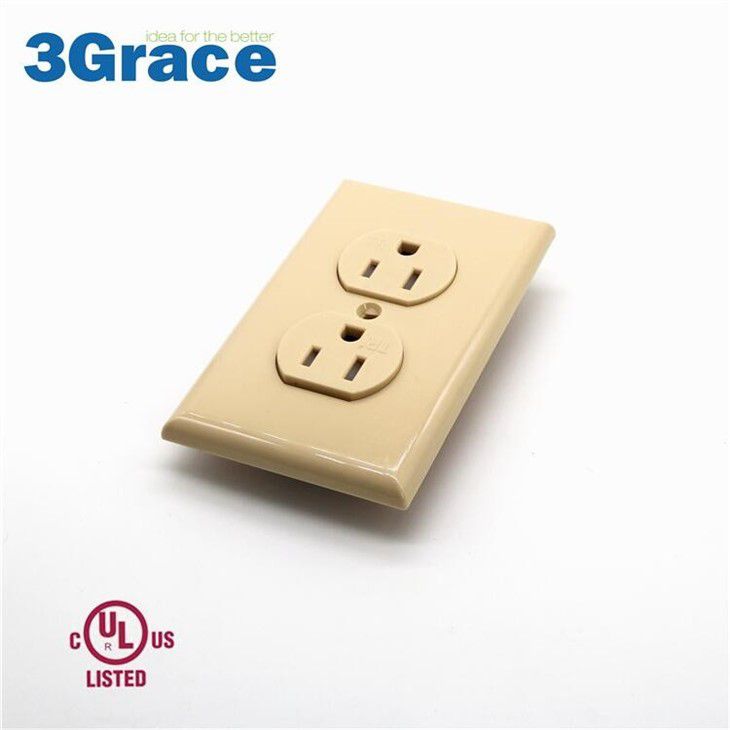

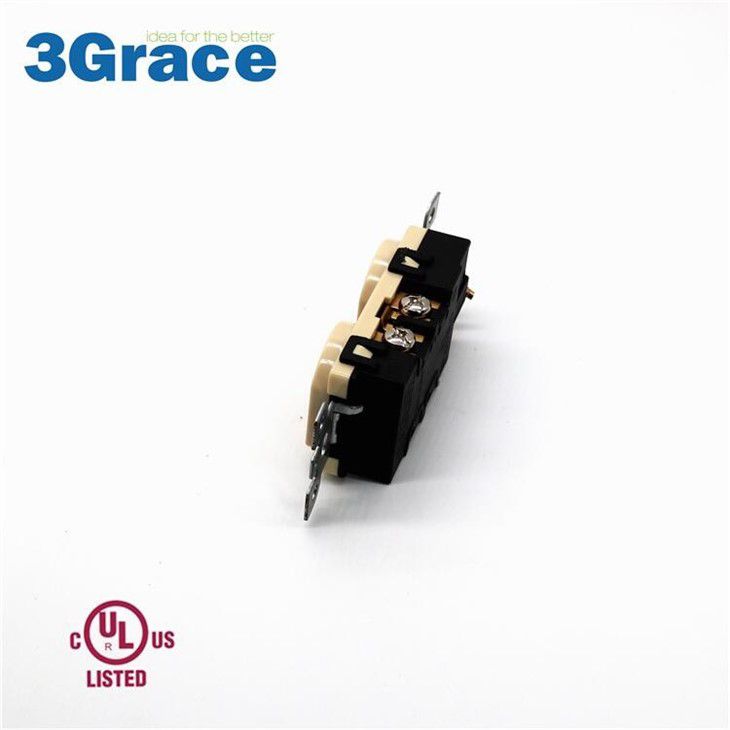

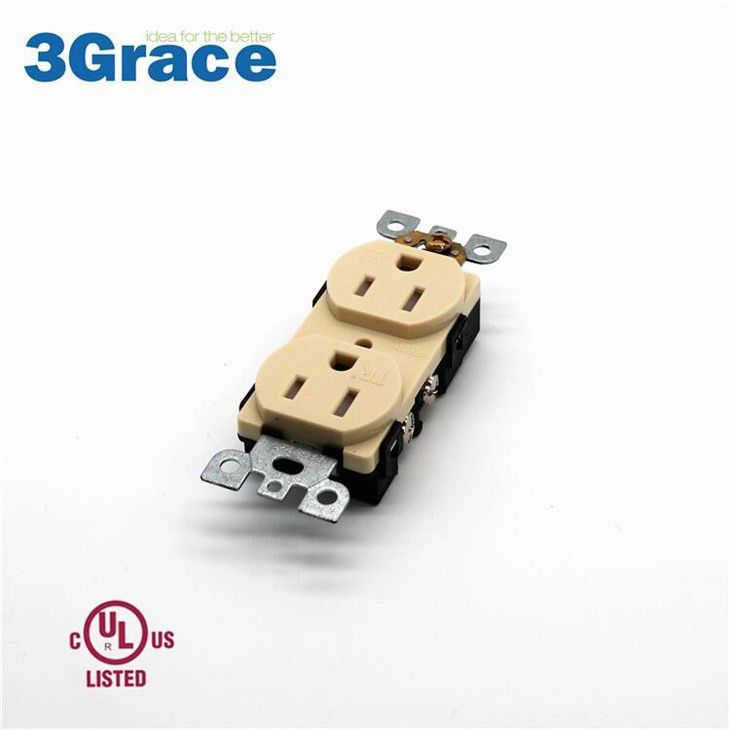

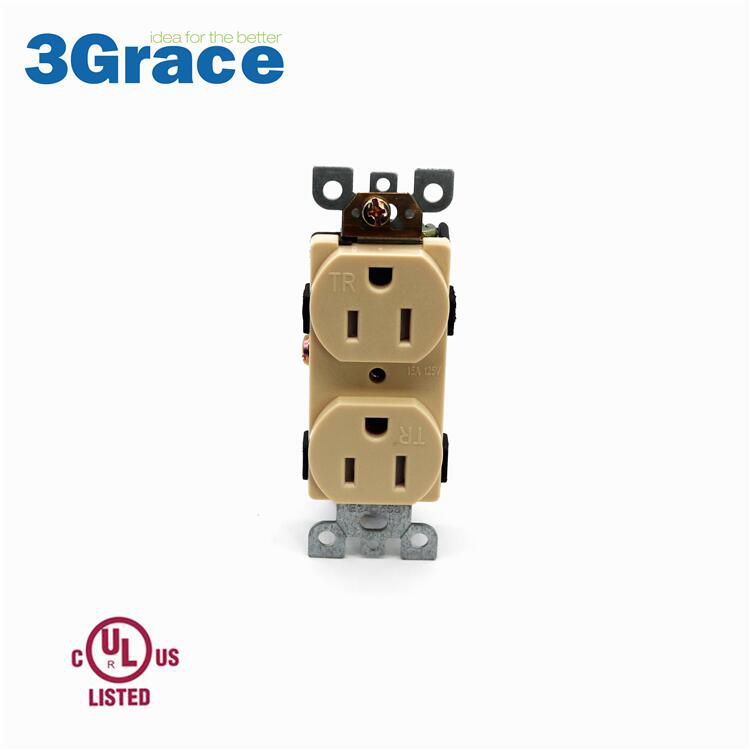

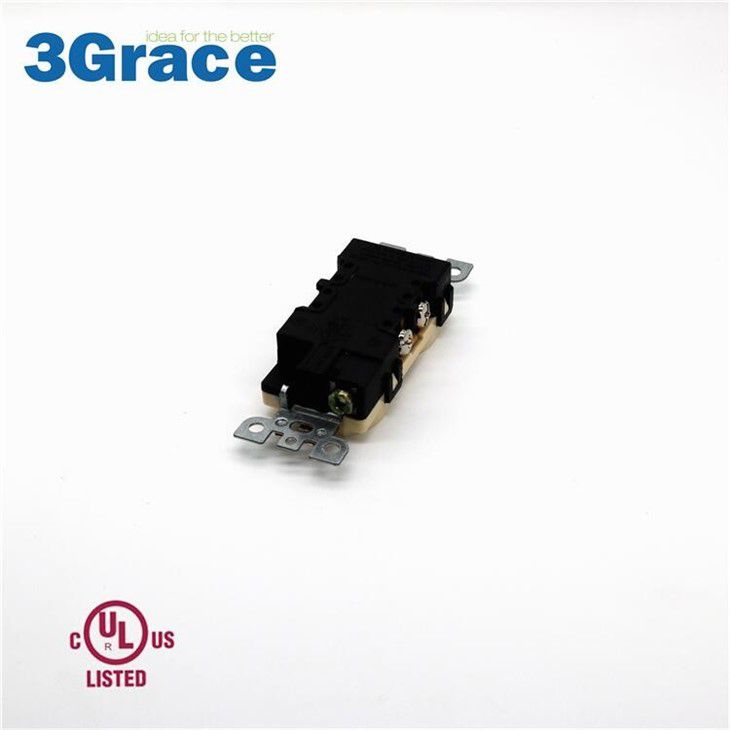

Decorative Tamper Resistant Duplex Receptacle

DESCRIPTIONGFCI

Min. Order :  1 Piece/Pieces

Standard Classification of Plugs :  CN US other


contact
Product Attributes

Place Of Origin: China

Scope Of Application: Residential / General-Purpose

Packaging & Delivery

Selling Units    :    Piece/Pieces

Product Description

Residential and Commercial Receptacles

Trimone TST15 TR is designed with the Tamper resistant, heat resistant, and grounding protection. It is also provide end users with the easy installation processes that allow house holder easily installing the outlet by their selves.


Product Specification:

Model

‎TST15 TR

color

white

Voltage

‎125 Volts

Amperage

‎15 Amps

Installation Method

‎Wall-Mounted

Item Package Quantity

‎10

Measurement System

‎Metric

Plug profile

‎Embedded

Special Features

‎Easy to Install


Outlet Features:

1. The 3Grace 15Amp conventional receptacles are designed in order to support general household uses without concern about overload.

2. This UL complied 15Amp outlet is Intended for both commercial and residential applications. They are great for use in home or office where the outlets are required.

3. The Tamper-resistant 15Amp outlet help to increase the safety by blocking the insertion of foreign body into outlet, providing a safe option for children.

4. The duplex 15Amp outlet provides with faster Installation with quick wire (push-in wiring).

5. 2 years guaranty offered.


Product Application:



How to install a conventional receptacle?

Step1: Following the instruction for Connecting the wires.

Step2: Choose either side wiring or quick wiring,

2a. Side Wiring: Strip the insulating layer off the front end of the wire to expose the copper wire, then Looping wires around terminal screws in a clockwise way, and tightening screws with the torque force among 14-16 in-ibf.

2b. Quick wiring: the same as side wiring, strip the insulating layer off first, then insert the exposed copper wire in to the appropriate terminal hole, then tightening the screws with torque force among 14-16in-ibf.

Step3: Installing the receptacle in standard wall box with screws and mounting the cover plate.

Step4: Restoring the power at the service panel.
