Lishui Trimone Electrical Technology Co., Ltd
Payment Type : L/C,T/T,Paypal,Money Gram,Western Union
Incoterm : FOB,CFR,CIF,EXW,FCA,CPT,CIP,Express Delivery
Min. Order : 2000 Piece/Pieces
Transportation : Ocean,Land,Air,Express
Port : Ningbo,Shanghai,Shenzhen
Standard Classification of Plugs : US
Option : TCT15-1J
contact
Model No.: TCT15-1J
Brand: 3Grace
Warranty Period: 3months-1year
Custom Processing: Yes
Place Of Origin: China
Chassis Style: Wall Socket
Grounded: Standard Grounding, Self Grounding, Self Grounding
Scope Of Application: Commercial, Hospital, Industrial, Residential / General-Purpose
Model No.: TCT15-1J
Warranty Period: 12 months
Color: White
Certification: UL
Standard: US
Material: PC+Cooper
Size: 96.8*23.8*23.2mm
MOQ: 2000
OEM: Yes
Selling Units : Piece/Pieces
Package Type : Export Carton
Picture Example :

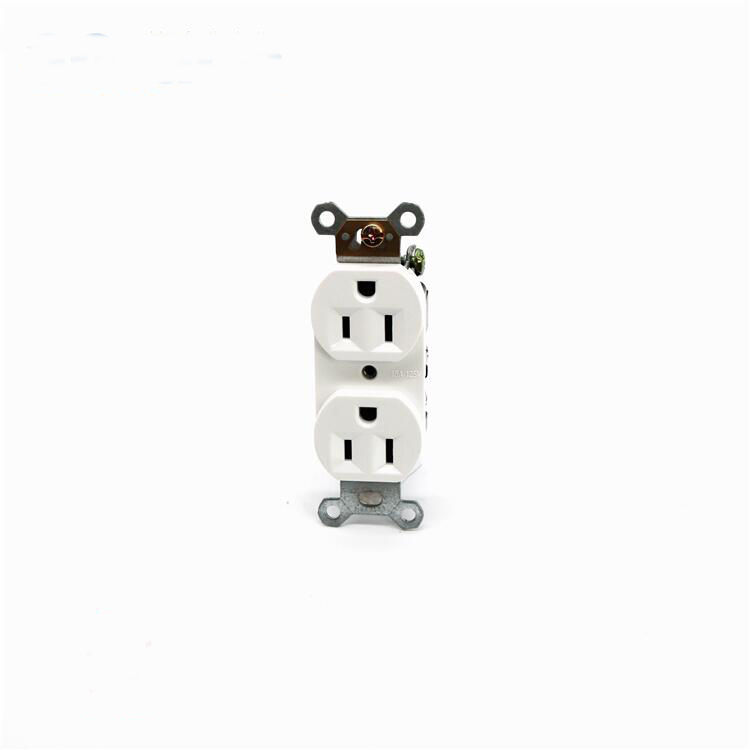

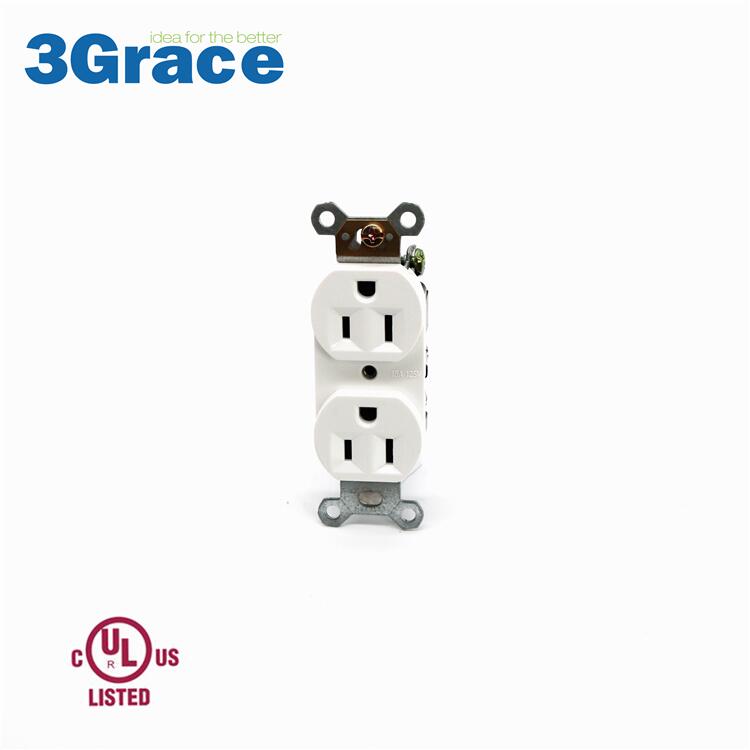

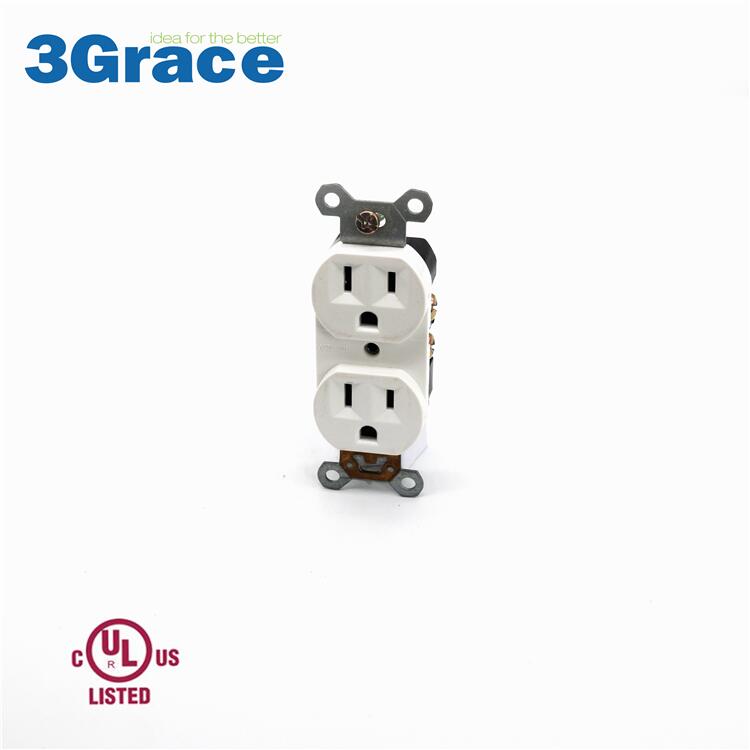

Receptacle
– Made of polycarbonate
– Push in #14 AWG Cu solid wire for 15A branch circuit only
– Side wire terminals accept #12 or #14 AWG solid copper or stranded wire
– Shallow design for maximum wiring room
– All devices fit standard wall boxes and are suitable for ganging
– Easy-access green hex head ground screw
– Captive mounting screws
– Washer-type break-off plaster ear for best flush alignment
– Large head combination screws for fast wiring
– Terminal screws backed out ready for wiring
– Combination Slot/Phillips head mounting and terminal screws ease installation
– Colors- White, Ivory, Almond, Deep Almond, Gray, Black or customized color
Description:
| Ground | U-Grounding Screws |
| Amperage | 15Amp |
| Voltage | 125V AC |
| HP Rating | 5-15R |
| Pole | 2 |
| Wire | 3 |
| Termination | quick wire Push-in and side wired |
| Face & Body Material | PC |
| Strip Material | Steel |
| Standard Color | White / Ivory / Almond /Black/Gray |
| Certification | UL/CUL |
| Packing type | with/without Wall Plate |
Lead time according detail order and requirements, negotiation;

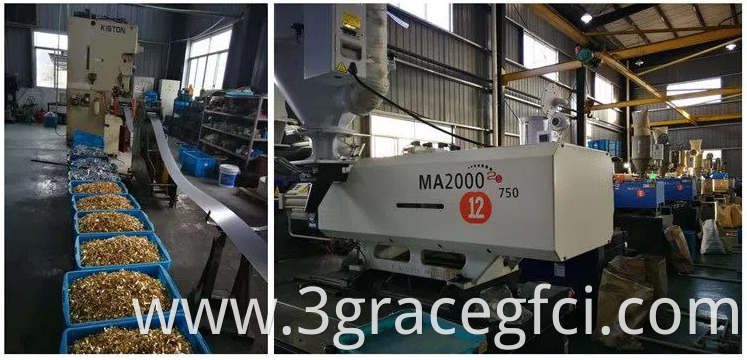

Our equipment:
