Lishui Trimone Electrical Technology Co., Ltd

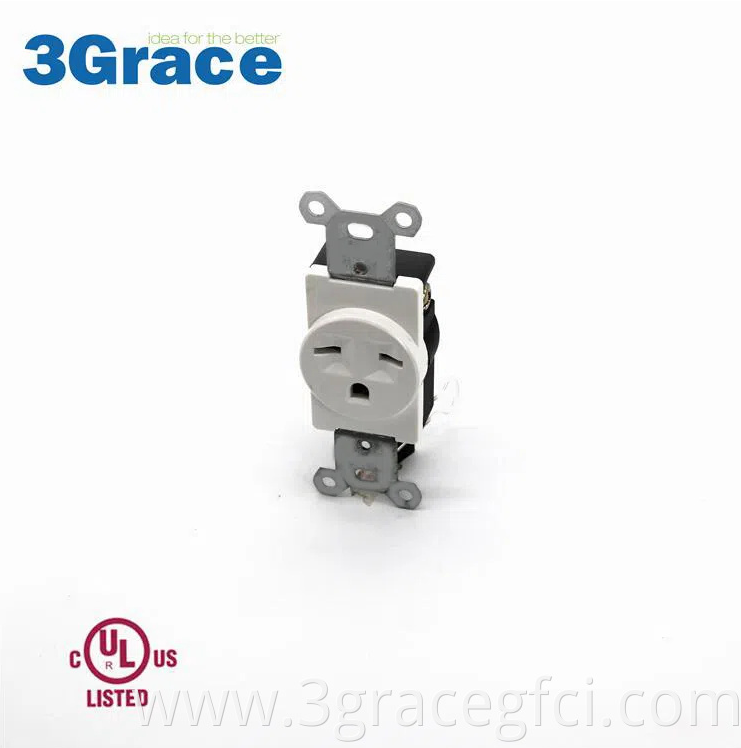

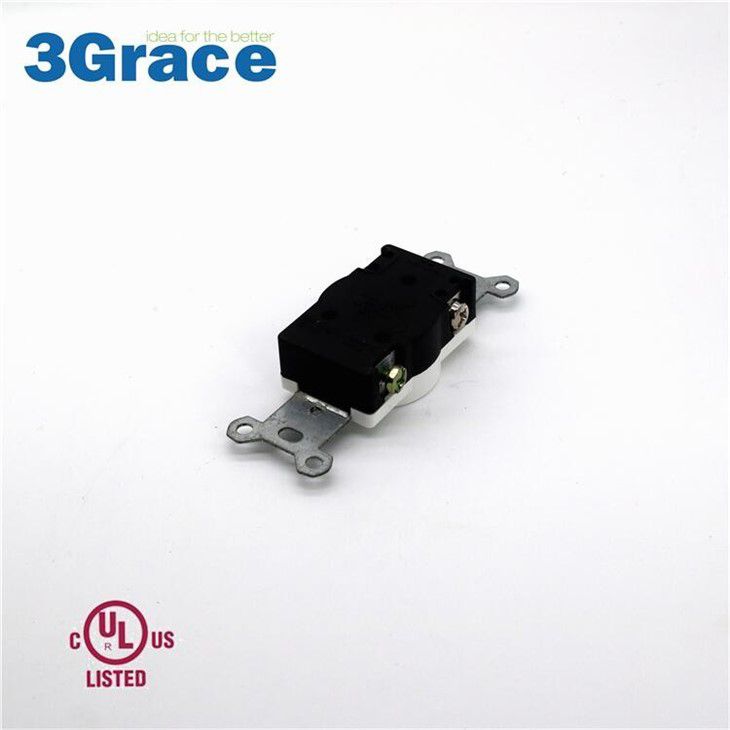

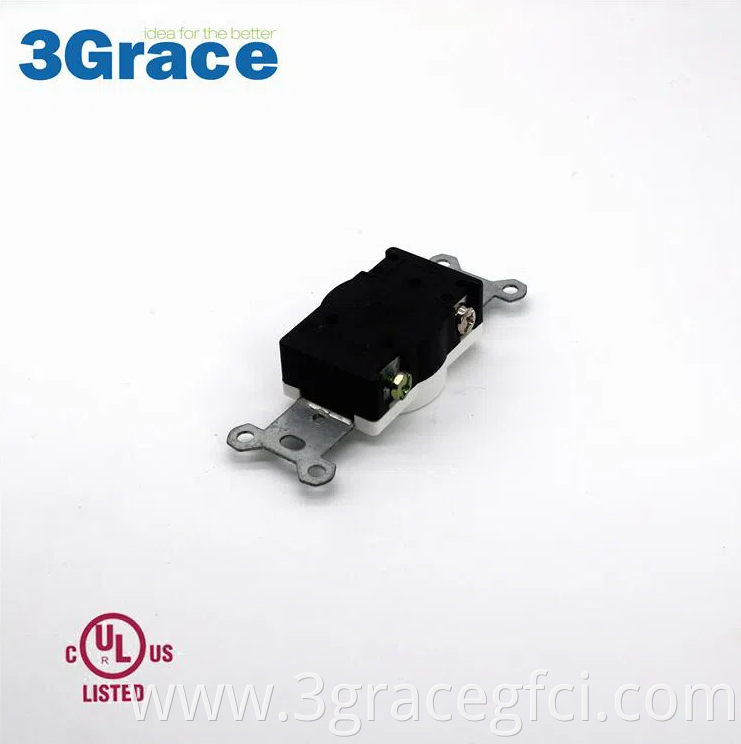

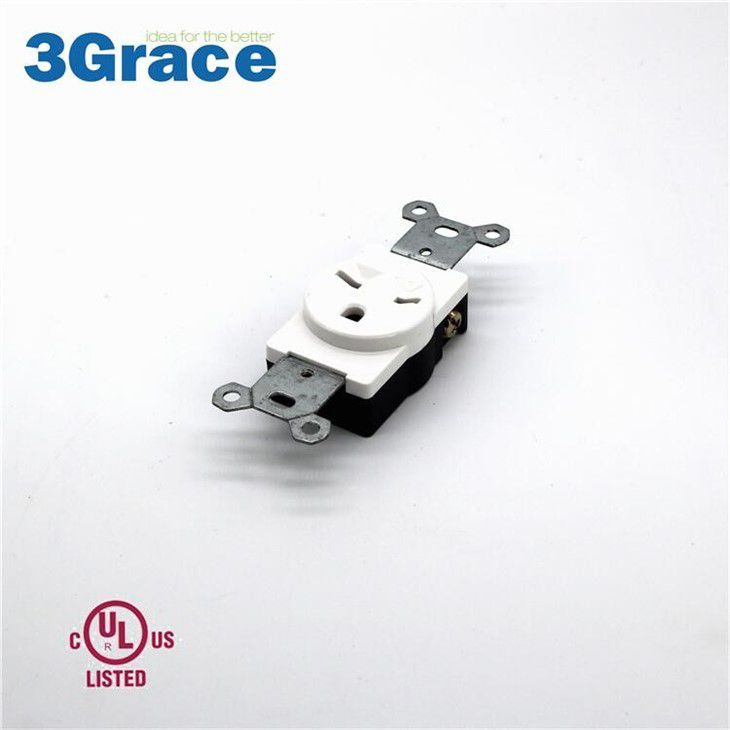

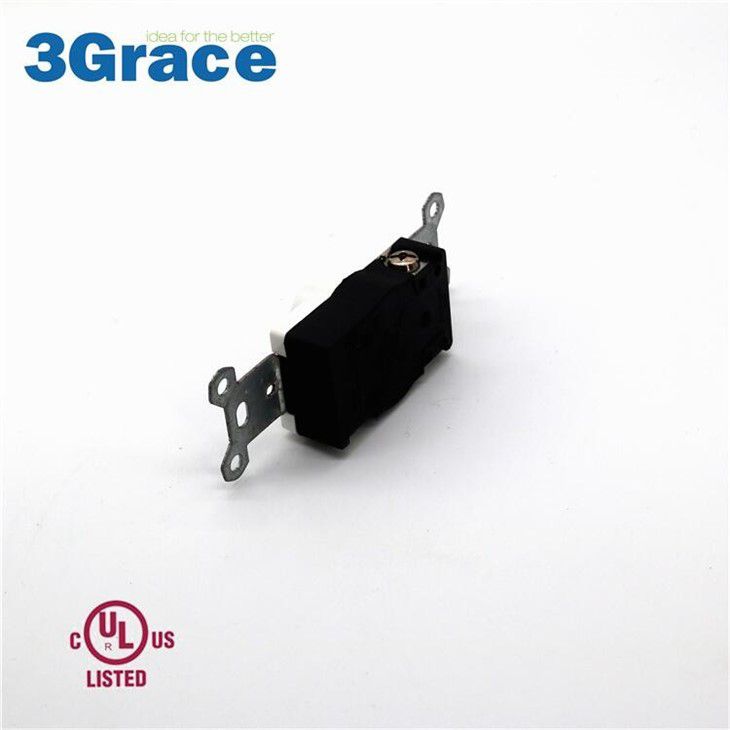

TMBR15/250 Single Receptacle Outlet Self-Grounding

Min. Order :  1 Piece/Pieces

Standard Classification of Plugs :  CN US other


联系我们
产品属性

Model No.: TMBR15/250

Place Of Origin: China

Scope Of Application: Hospital, Industrial

包装配送

Selling Units    :    Piece/Pieces

产品描述

Made of polycarbonate


Shallow body design fits standard junction boxes. Side terminal wiring (copper only). Break-off plaster ears. Grounding screw

 Easy-access green hex head ground screw

Suitable for both industrial use in factories, warehouses, power plants and for commercial use in corporate buildings, hotels, and restaurants


Production Introduction

Product Name

TMBR15/250   Single Receptacle Outlet

Brand Name

3Grace

Rated current

15Amp

Rated Voltage

250V AC

HP Rating

5-15R or 5-15P or 5-15R & 5-15P Combination

Appilication

Residential / General-Purpose

Main material

PC and copper

Color

White/Ivory/Almond/Black/Grey, or customized

Operating temperature

-20 ℃ ~ +66 ℃

Certifications and Compliance

UL / CUL
